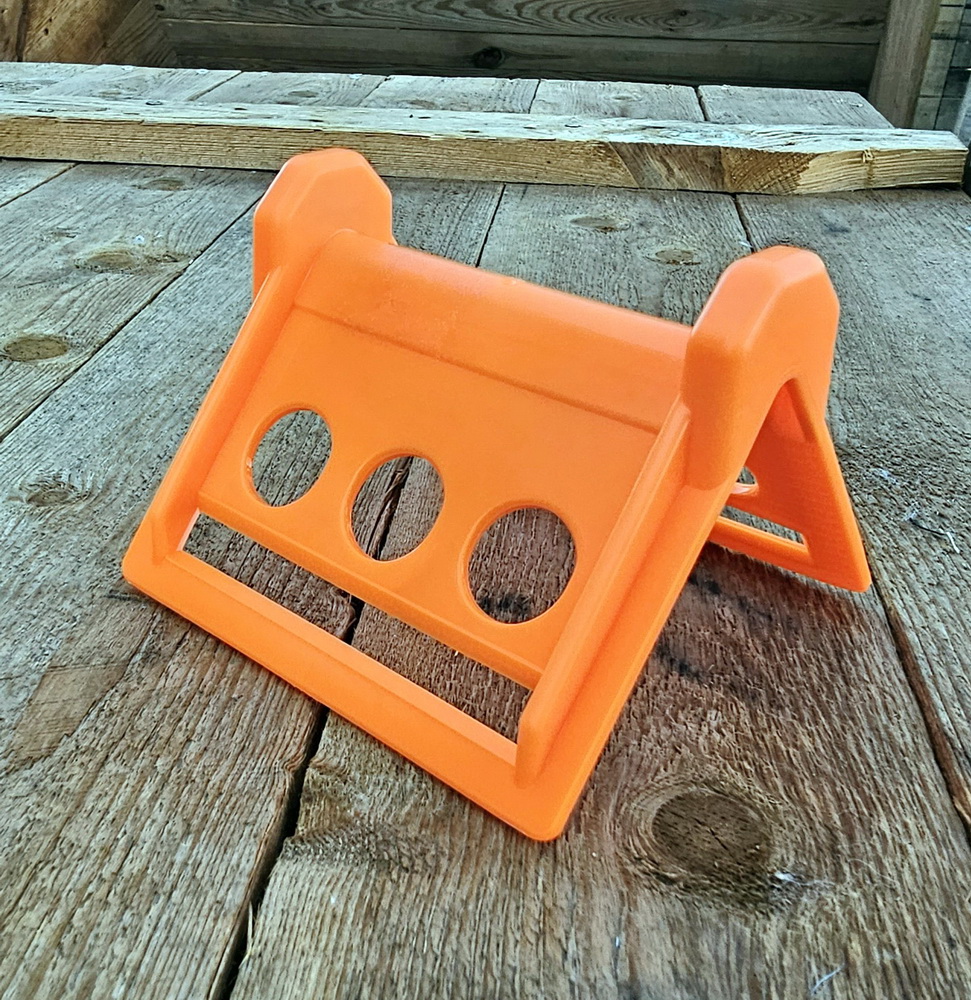

for strap width 25 mm - Dimension 110 x 70 x 32 mm - Weight: 18 gr.

The GWS® belt and edge protection is used as a base to protect the lashing strap.Benefits:     Handy and easy on the load     Longer durability of the lashing straps     Better force distribution in the lashing strapAlso available for tape widths of 25, 35 and 75 mm on request

Kantenschutzwinkel zur Bildung von Ladeeinheiten, z. B. mit Kartons, Fässern oder Hobbocks. für Gurtbandbreite 50 mm Abmessung 110 x 70 x 64 mm Gewicht: 36 gr.VPE = 200 Stück6000 Stück/Palette

The heavy-duty pad that becomes edge protectionWhether the heaviest concrete columns, cast steel parts or large machines - sharp-edged and difficult-to-secure loads are secured against slipping or scratching with the GWS® anti-slip edge protection pad for heavy-duty transport and lashing straps are protected. The convincing advantages at a glance: - Very long service life - Easy to clean again and again - Protects lashing straps and minimises transport damage - Reduces friction loss (‘k-value’) at the edges of the load - Handy and lightweight  Dimensions:120 mm x 240 mm x 3 mm

Extremely break-resistant and dimensionally stable thanks to the new design.For the transport of standing, lying or edge-sensitive loads.Suitable for transporting paper rolls.Technical specifications:     For webbing width 50 mm     High quality technical ABS plastic     Extremely break-resistant and dimensionally stable thanks to the new design     Improvement of the deflection factor "k" when lashing down to k = 1.8     Belt fixation by side guide     Pressure point shifted by raised side parts     no edge damage due to cavity inside     Dimension 217x187x120mm     Weight approx. 318g1 carton = 56 pieces

Pulled loosely onto the webbing, protective hoses enable better distribution of the pretensioning forces and protect the webbing from wear.For 75 mm webbing (round slings or lifting straps), cut in 30 cm     Better power distribution     Longer durability of the lashing straps     Protection of the load against abrasion

Compliance with the specifications of VDI 2700 sheet 15 is observed in the production of these non-slip mats.     Improves the coefficient of sliding friction to µ = 0.6     Mats or rolls of rubber granules     Maximum load: 250 t/m² = 2.5 N/mm² at 8 mm thickness     Tensile strength approx. 0.80 N/mm² based on DIN EN ISO 1798     Elongation at break at least 60% based on DIN EN ISO 1798     Can be used multiple times, durable, strong     Pollution Tolerant     Easy to stow away     Thicknesses: 6mm, 8mm, 10mm     Made in GermanyAre you interested in other dimensions?Not sure which mats you need?Give us a call! We would be happy to advise you!

Non-staining edge protection pad with anti-slip effect and sliding body for lashing straps with a strap width of up to 50 mm.Maximum safety thanks to the anti-slip effect and absolutely tear-resistant thanks to the integrated fabric.The convincing advantages at a glance:    - handy and light, octagonal 15 x 15 cm    - Reduction of the friction loss (“k-value”) at the edges of the load       reduces the loss and damage of transported goods    -Time savings through possible permanent fixation on the tension belt

Compliance with the specifications of VDI 2700 sheet 15 is observed in the production of these non-slip mats.         Fully flexible and highly tear-resistant         Can be used again and again         Highest coefficient of sliding friction         Easy to store and clean         4.5mm thick         Made in GermanyAre you interested in other dimensions?Not sure which mats you need?Give us a call! We would be happy to advise you!

Compliance with the specifications of VDI 2700 sheet 15 is observed in the production of these non-slip mats.     Fully flexible and highly tear-resistant     Can be used again and again     Highest coefficient of sliding friction     Easy to store and clean     4.5mm thick     Made in GermanyAre you interested in other dimensions?Not sure which mats you need?Give us a call! We would be happy to advise you!

Zum bequemen und schnellen Aufrollen von Zurrgurten. So lassen sich Losenden leichter verstauen, nehmen weniger Platz ein und sind schneller wieder einsetzbar.Für Gurtbandbreiten bis 50 mmFür Gurtlängen bis 10 mMaterial: Metall verzinkt

The GWS® head lashing cardboard (GWS® K-PAPP) is a newly developed securing aid for load securing. Instead of using pallets for head lashing when securing loads, the GWS® K-PAPP can be used cost-effectively, which also saves time and weight.The GWS® K-PAPP consists of one piece and is easy to handle. If the lashing angles are observed, the GWS® K-PAPP offers optimal load securing in or against the direction of travel. In this way you save on lashing equipment, because by securing the load in combination, you can secure the load more quickly and easily than just lashing it down, for example.    Saving time and weight    Can be used in and against the direction of travel    If used correctly, multiple uses are possible    Fully recyclable and therefore environmentally friendly    Optimum load securing if the lashing angles are observedIn conjunction with anti-slip mats between the palletized bagged goods and the loading area, an even better retention force is achieved.Dimensions: 1200 x 3200mmMinimum order quantity: 500 piecesSmaller quantities: It is possible to purchase a smaller quantity in connection with other current orders.

GWS® V-PAPP IBC is a certified reinforcing cardboard and edge protector for securing loads in intermediate bulk containers. GWS® V-PAPP IBC is not only an extremely stable edge protector. The design ensures that the grids of the IBC are additionally reinforced. This means that pre-tensioning forces of 600 daN can be applied without the grids becoming deformed. - Pretensioning forces of up to 600 daN - Can be used multiple times if used correctly - Also suitable as edge protection for other loads - Suitable for one or two IBCs standing next to each other  The GWS® V-Papp IBC is fully recyclable and protects the environment.  Dimensions: 1,000 x 250 mm  If you require loading instructions in addition to the certificate, please contact us.

This particularly light edge angle protects your load from transport damage and protects your lashing straps.     - light and flexible     - 135 mm wide, 90 mm leg length     - suitable for belts up to 75 mm wide

Protects your transported goods and spares your belts!     190 x 190 mm side lengths     19 mm material thickness (double wall plate)     Lengths from 0.8 m - 6.0 m

Extremely break-resistant and dimensionally stable thanks to the new design.For the transport of standing, lying or edge-sensitive loads.Suitable for transporting paper rolls.Technical specifications:     For webbing width 50 mm     High quality technical ABS plastic     Extremely break-resistant and dimensionally stable thanks to the new design     Improvement of the deflection factor "k" when lashing down to k = 1.8     Belt fixation by side guide     Pressure point shifted by raised side parts     no edge damage due to cavity inside     Dimension 105x105x90mm     Weight approx. 112g1 carton = 200 pieces

GWS® Z-Papp is an aid to protect the cargo for your road, rail and sea transport.The GWS® Z-Papp was developed, among other things, as an intermediate layer or side protection for the transport of soft packaging, such as e.g. B. palletized sacks or big bags as an alternative to the use of pallets or wooden panels.     Easier to handle than pallets or wooden panels     If used correctly, multiple uses are possible     versatile     Fully recyclable and therefore environmentally friendly     Special dimensions possibleGWS® Z-Papp can be made for you in individual special dimensions.Smaller quantities: It is possible to purchase a smaller quantity in connection with other current orders.

The ends of lashing straps and lashing chains can be secured quickly, easily and neatly with this Velcro strap.25mm x 400mmPacking unit = 10 pieces

Compliance with the specifications of VDI 2700 sheet 15 is observed in the production of these non-slip mats.     Grid anti-slip mat     flexible     tear resistant     Only 3.3mm thick     Made in GermanyAre you interested in other dimensions?Not sure which mats you need?Give us a call! We would be happy to advise you!

Made of rubber granulateCan be used multiple times, durable, strongPollution TolerantEasy to stow awayOnly 3mm thickMade in Germanyimproves the coefficient of friction up to µ = 0.6

The heavy-duty pad that becomes edge protectionWhether the heaviest concrete columns, cast steel parts or large machines - sharp-edged and difficult-to-secure loads are secured against slipping or scratching with the GWS® - anti-slip edge protection pad for heavy-duty transport and lashing straps are protected.The convincing advantages at a glance:     -very long useful life     -always easy to clean     -protects lashing straps and reduces transport damage     -Reduction of the friction loss (“k-value”) at the edges of the load    - Handy and lightDimensions:-120mm x 240mm x 6mm

The GWS® LaSi-PAPP is a certified aid for load securing of soft packaging.GWS® LaSi-Papp is a special edge protection with which the necessary securing forces can be applied without damaging the load.     Preload forces of up to 800 daN can be achieved without any loss of friction     When used correctly, it can be used several times     Also suitable as edge protection for other loadsIn conjunction with anti-slip mats between the palletized goods and the loading area, an even better retention force is achieved.The GWS® LaSi cardboard is fully recyclable and protects the environment.Dimensions: 300 x 3,000 mmMinimum purchase quantity: 3,200 piecesPer pallet: 400 piecesSmaller quantities: It is possible to purchase a smaller quantity in connection with other current orders.

For convenient and quick rolling up of lashing straps. Loose ends can be stowed away more easily, take up less space and can be used again more quickly.For webbing widths up to 50 mmMaterial: steel, black powder-coated

for strap width 35 mm - Dimension 110 x 70 x 42 mm - Weight: 19 gr.
